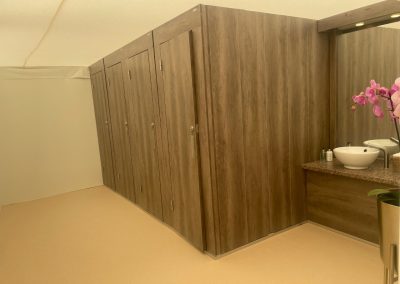

SuperLux Modular Mobile Toilet Hire

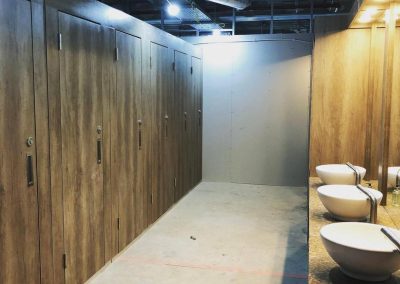

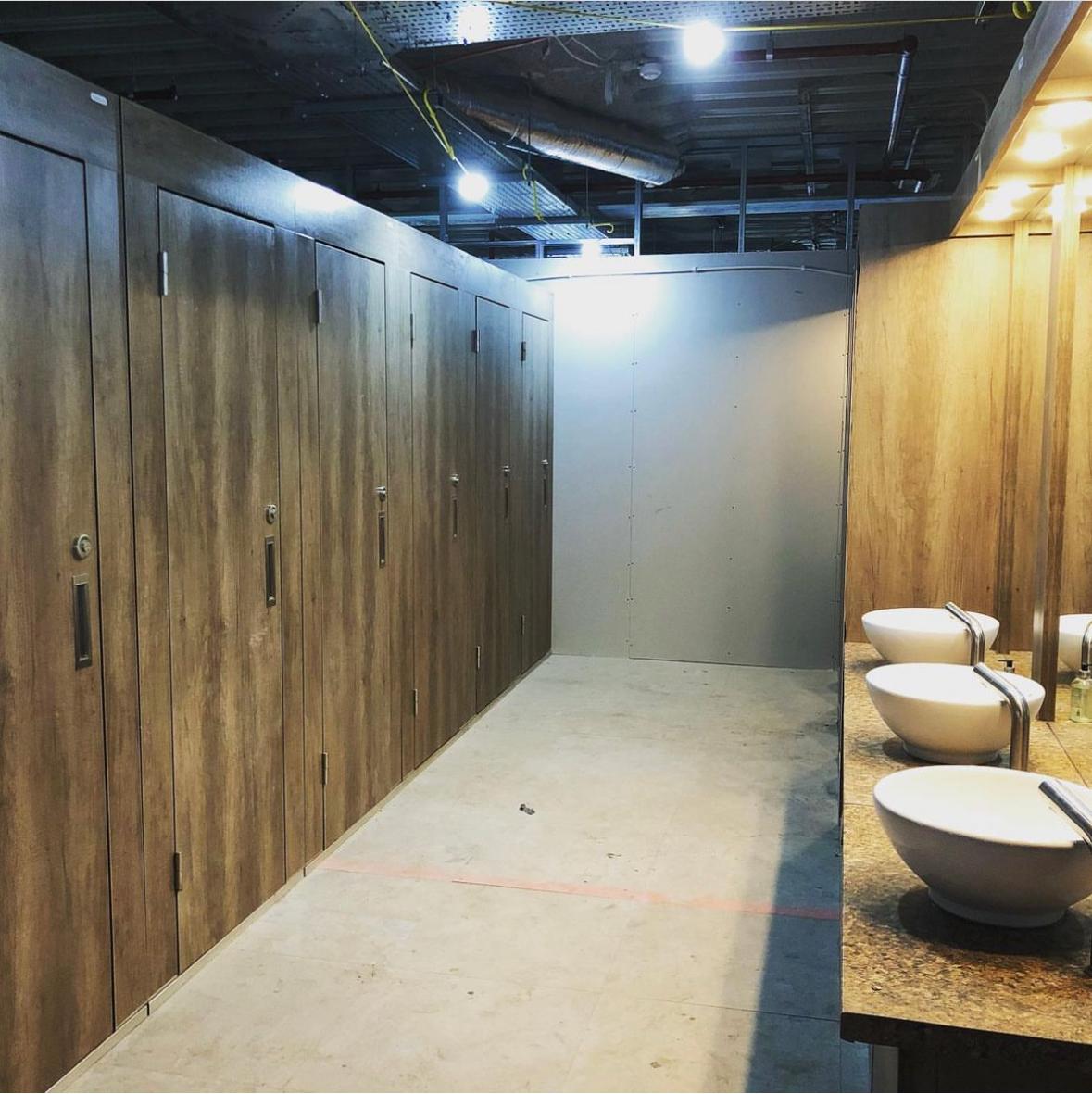

The SuperLux Modular Toilet System provides flexible, high-quality temporary toilet facilities for events, venues and commercial locations. Its modular design allows toilet cubicles, urinals, vanity units and accessible facilities to be combined into configurations suited to the requirements of each installation.

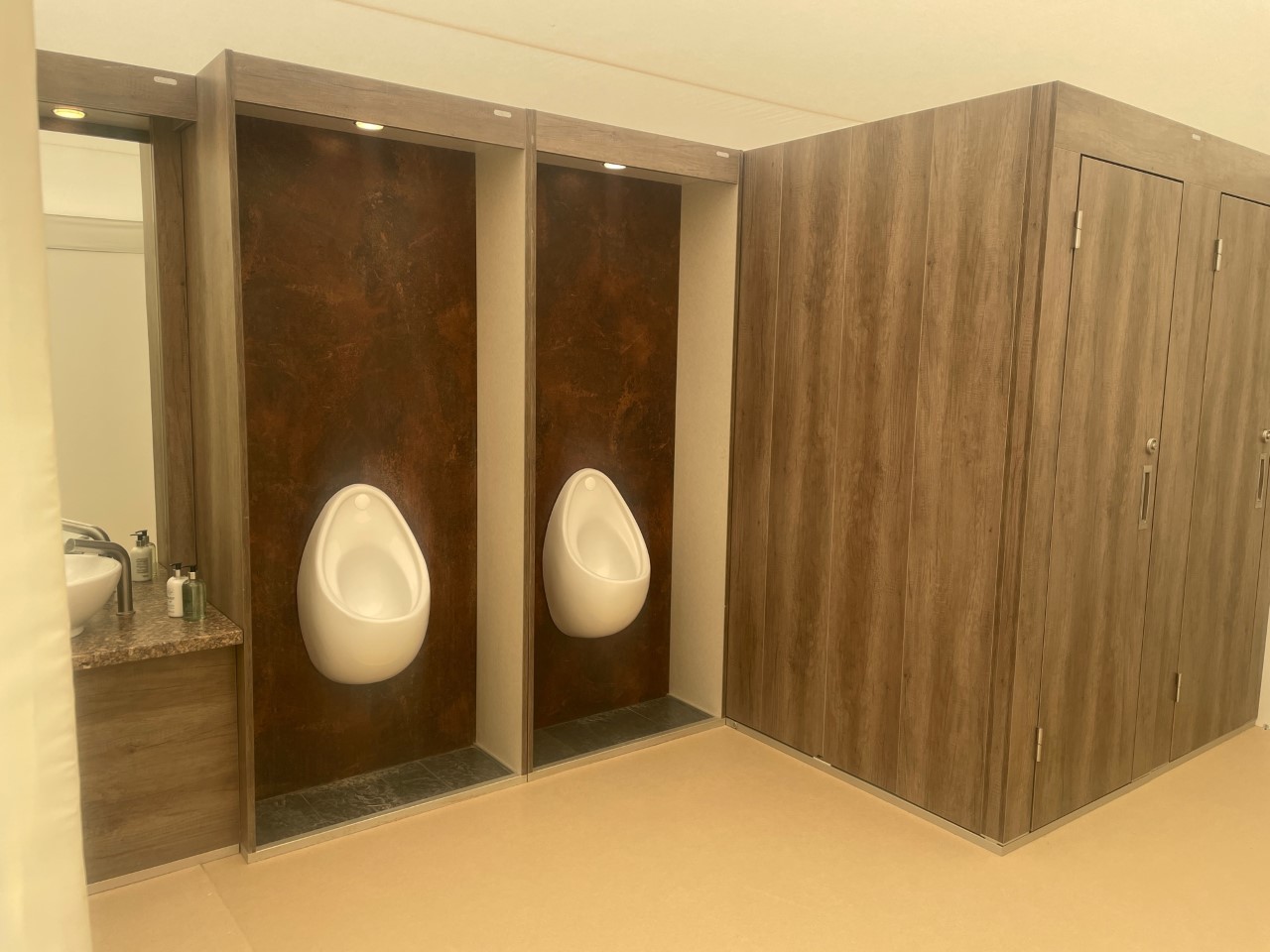

There are modules to provide cubicles, urinals, vanity units and accessible cubicles.
As each module width is based on multiples of 0.9m it is possible to install the modules in any order to provide flexible arrangements for any number of guests or configuration.
The system is primarily designed for use with vacuum drainage with low water usage and chemical free.
SuperLux Modular Mobile Toilet Hire
The SuperLux Modular Toilet System provides a flexible way to create temporary toilet facilities for events, venues and other locations where a fixed toilet block or conventional mobile toilet trailer may not be suitable.
The system is designed around individual modules that can be combined to create a toilet installation appropriate for the size and requirements of your event. Available modules include toilet cubicles, urinals, vanity units and accessible toilet facilities.
For a more detailed overview of the system, including how the modular design can be used at different types of events, see our SuperLux Modular Toilet System page.
SuperLux Modular Toilet Configurations
One of the main features of the SuperLux system is its modular configuration.
The individual units are based around standard module widths, allowing them to be arranged in different combinations. This means the final installation can be planned around the available space and the facilities required rather than being limited to the layout of a fixed mobile toilet trailer.
Depending on the requirements, a SuperLux installation can incorporate:

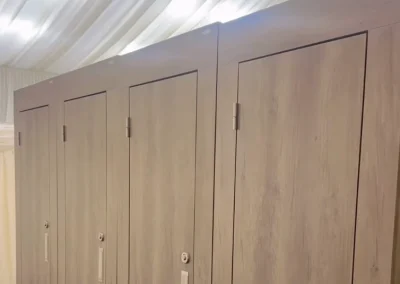

- Individual toilet cubicles
- Urinal facilities
- Vanity and hand-washing units
- Accessible toilet facilities
- Multiple modules combined into a larger installation
The appropriate configuration will depend on factors such as the expected number of guests, event duration, available space and the facilities required.
SuperLux System Requirements
Although SuperLux is a portable modular system, suitable site infrastructure is required for installation.

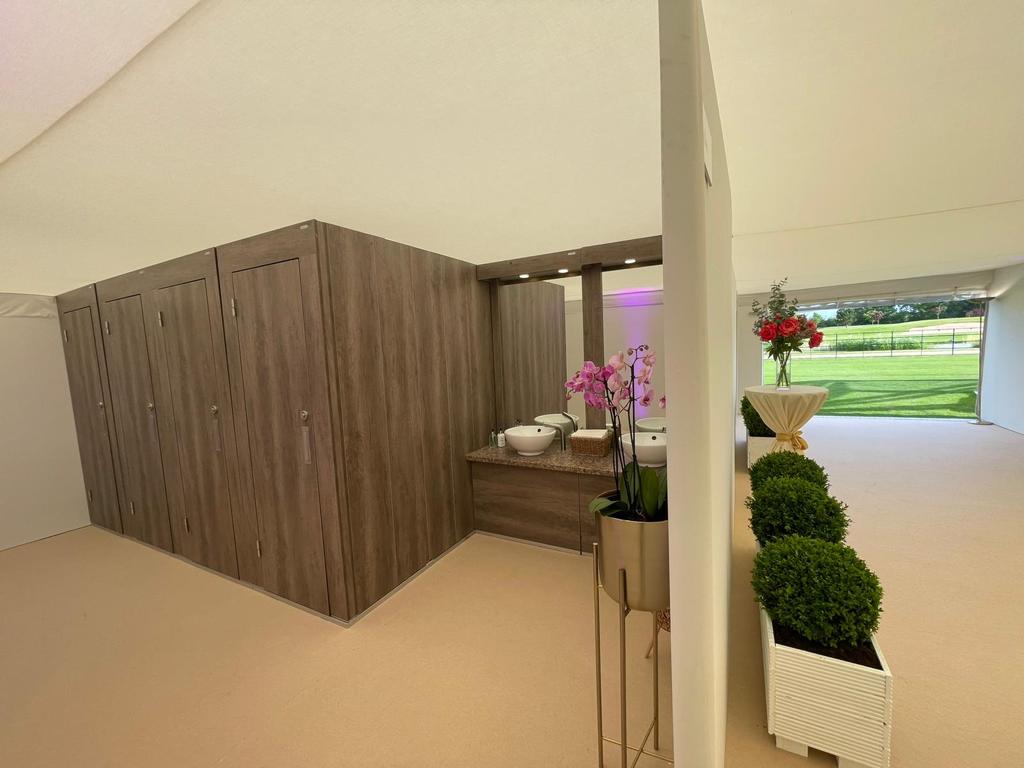

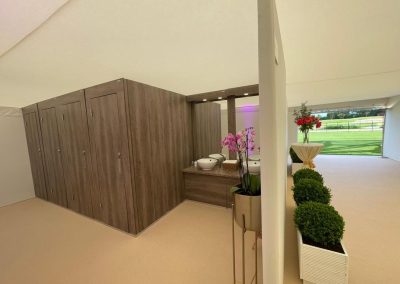

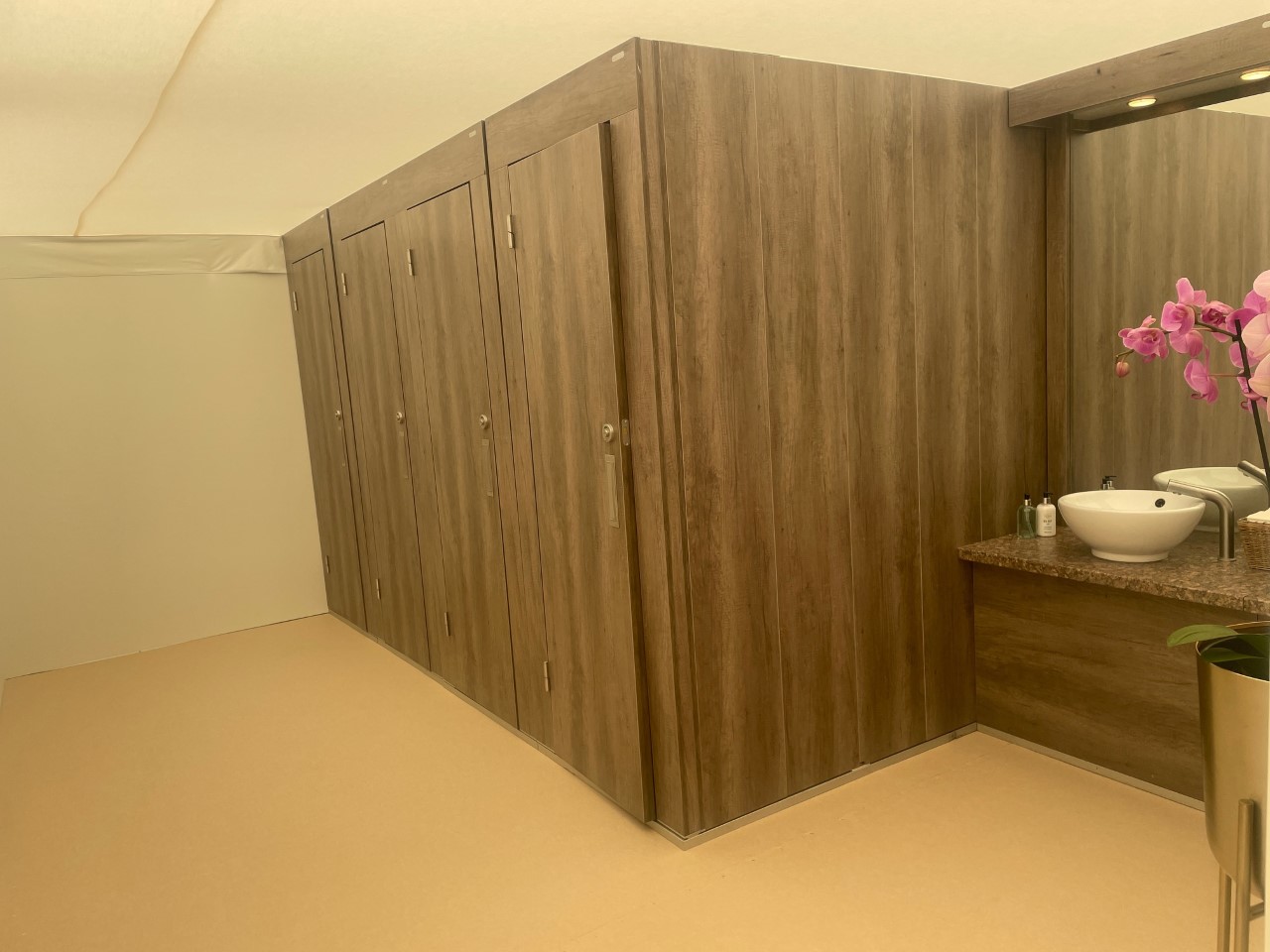

The installation area should have a firm, level base that is protected from the weather. The system is particularly suited to covered locations such as marquees, temporary structures and suitable indoor or sheltered areas.
A water supply is normally required, with the system designed to operate with a supply pressure between 2 and 5 bar. Where a mains water connection is not available, an alternative tank and booster pump arrangement may be possible.
Electrical requirements vary according to the size and configuration of the installation. A basic 3+1 setup requires separate 13 amp single-phase 240 volt supplies for the pump assembly and for water heating and lighting. Larger configurations may require additional electrical supplies.
Because the requirements can vary according to the final configuration, we recommend discussing the proposed site with Mobile Thrones before booking.
Vacuum Drainage and Low Water Usage
SuperLux is primarily designed to operate using a vacuum drainage system rather than a conventional gravity-fed toilet arrangement.
The vacuum system allows waste to be removed efficiently while keeping water consumption low. The standard toilet specification gives a water consumption of approximately 0.8 litres per flush, with the setting adjustable depending on the configuration.
The system is also designed to operate without the chemical treatment normally associated with chemical portable toilets.
This makes SuperLux particularly suitable for events and venues looking for a more permanent-style toilet installation while still requiring a temporary and portable solution.
When Is SuperLux Modular Toilet Hire Suitable?
SuperLux can be considered where a flexible temporary toilet installation is required and there is suitable space and infrastructure available.
Typical applications include:
- Weddings and private events
- Corporate events
- Festivals and outdoor events
- Sporting events
- Hospitality and VIP areas
- Temporary venues
- Commercial premises
- Events held within marquees or temporary structures
- Locations requiring additional toilet capacity
The system can be configured according to the requirements of the installation, making it useful for both smaller and larger events.
If you are unsure whether SuperLux, a luxury mobile toilet trailer or another Mobile Thrones solution would be most appropriate, our team can discuss the options with you.
SuperLux Modular Toilet Hire – Technical Information
The specification below provides the technical information required when planning a SuperLux installation, including module dimensions, weights, power connections, water consumption and vacuum system capacity.
For event organisers and site managers, this information can be used to check whether the proposed installation location has the necessary space, electrical supply and water provision.
If you need help interpreting the specification for a particular venue or event, contact Mobile Thrones before making your booking.
System Requirements
SITING – A firm level base protected from weather.
POWER – A basic 3+1 setup will need 1x13amp single phase supply (240v) for the pump assembly (1.5kw) and 1x13amp single phase supply (240v) for water heating and lighting (3kw). Larger installations will require additional supplies depending on total equipment provided.
WATER – One supply normally required @ minimum 2 bar (max. 5 bar), but can be supplied using tanks and booster pump if necessary.
The system is primarily designed for use with vacuum drainage with low water usage and chemical free.

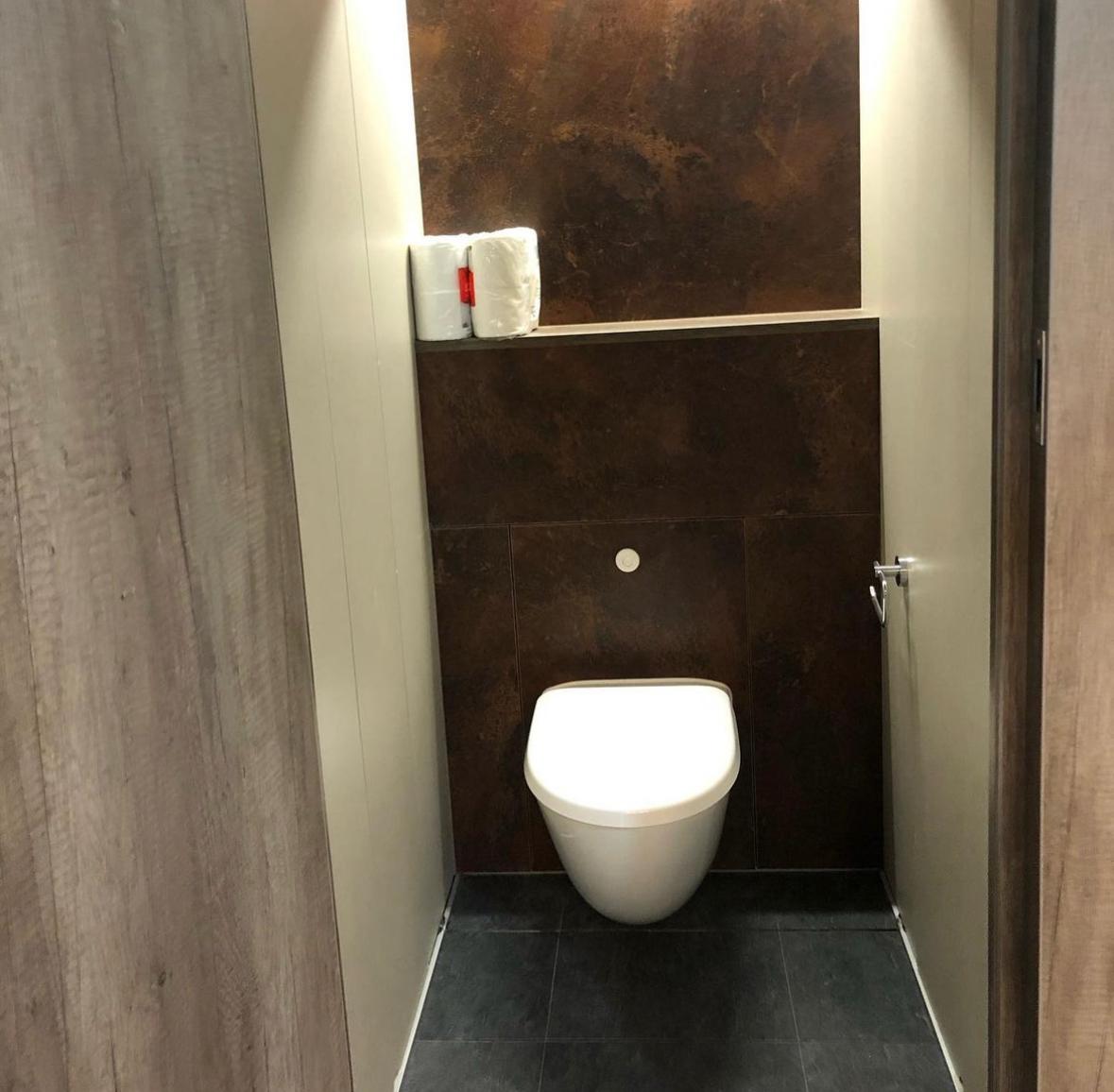

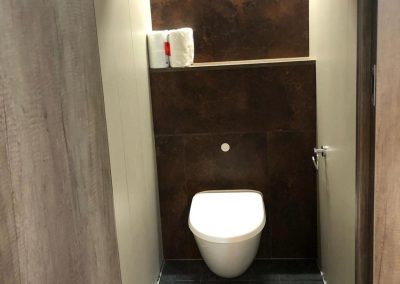

| Toilet Cubicle (Patented: GB2432853) | Folded | Assembled |
|---|---|---|
| Width | 0.9 | 0.9 |
| Depth | 0.69 | 1.8m |
| Height | 2.26 | 2.2m |
| Weight | 190 kg (approx. depending on model) | |
| Standard toilet fitted | Jets 59M FD/VPC-V | |
| Water consumption (per flush) | 0.8 litres (adjustable) | |
| Lighting | 1x13w fluorescent | |
| Power connection | 1 x system connection in 1 x system connection out |

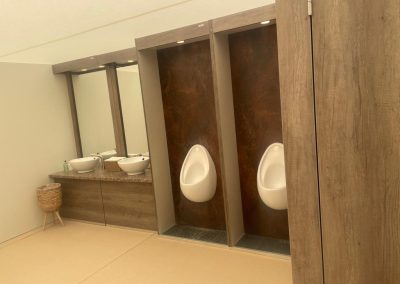

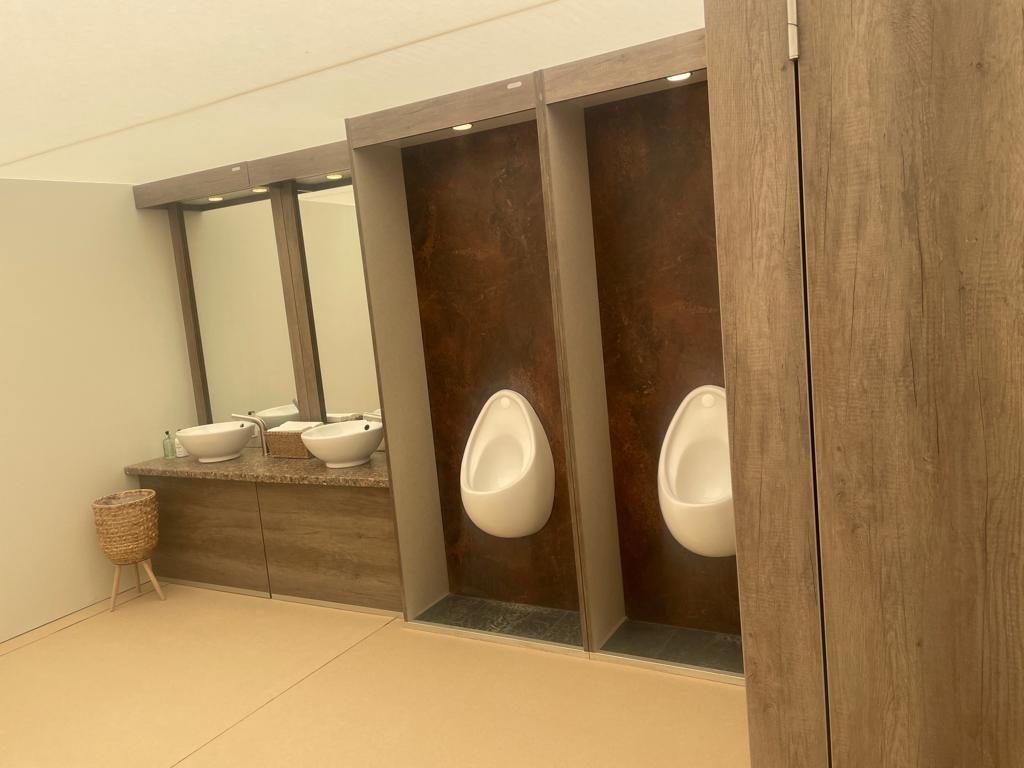

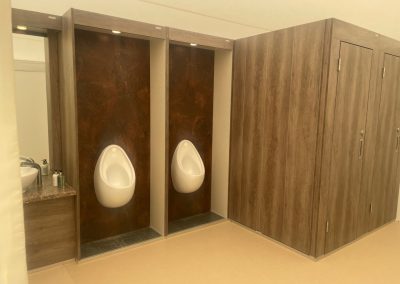

| Urinal Unit | Folded | Assembled |
|---|---|---|
| Width | 0.655m | 1.8m |
| Depth | 0.925 | 0.9m |
| Height | 2.24 | 2.2m |
| Weight | 170 kg (approx. depending on model) | |
| No. of urinals | 3 | |
| Lighting | 3 x 13w fluorescent | |
| Power connection | 1 x system connection in 1 x system connection out |

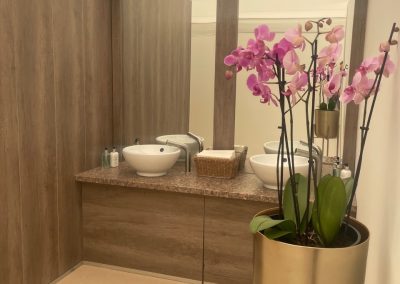

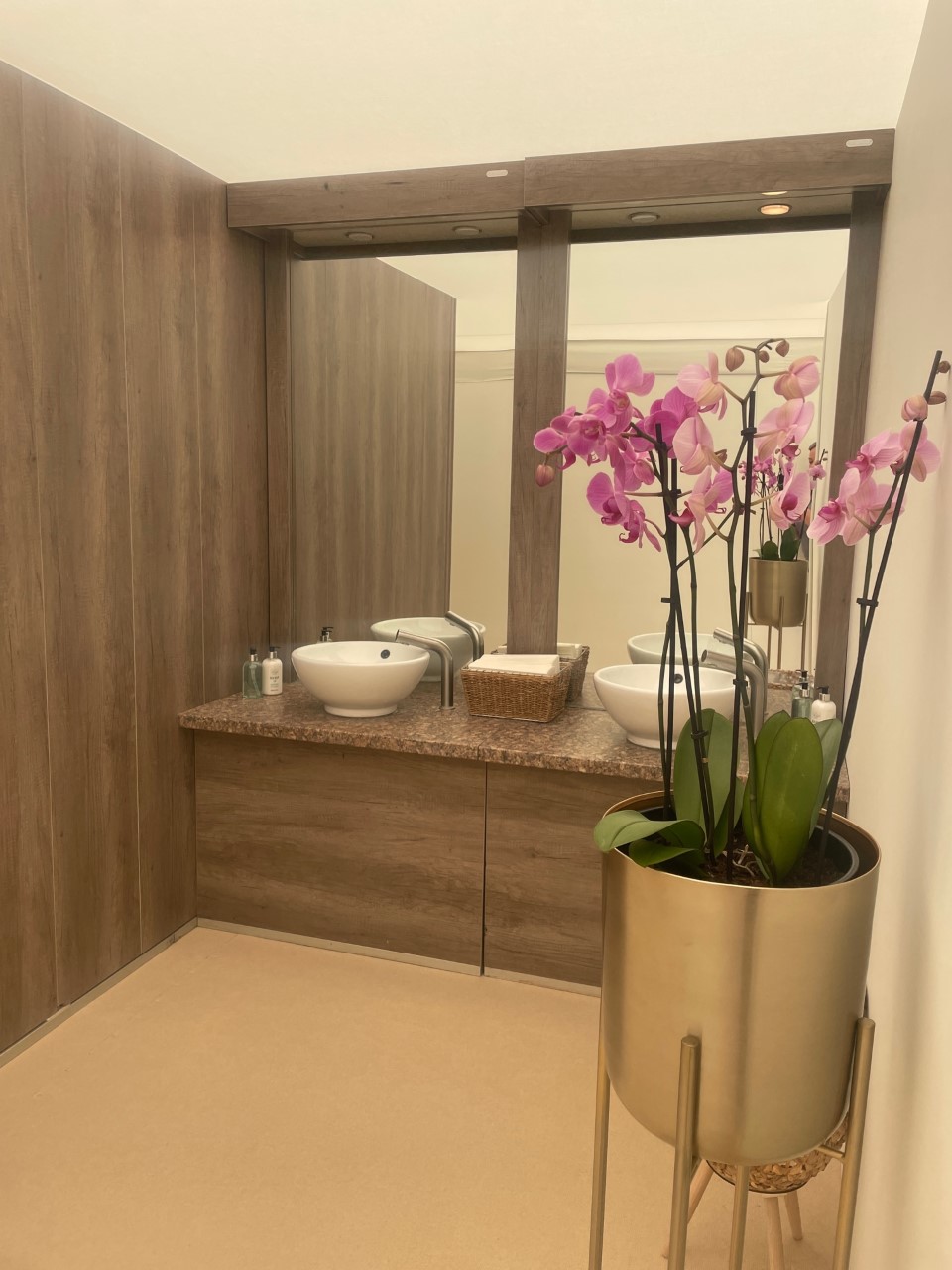

| Vanity Unit | |
|---|---|
| Width | 0.9m |
| Depth | 0.6m |
| Height | 2.2m |
| Weight | 70kg slave & 85kg master (approx. depending on model) |
| MASTER UNIT ONLY | Automatic infra red tap (depending on model) 2.2kw 240v water heater 240v distribution board with RCD and circuit breakers |
| Lighting | 2 x 240v 50w halogen |
| Power connection | 1 no 16amp 240v-in 4x system connections-out |
| SATELLITE UNITS | Automatic infra red tap (depending on model) |
| Lighting | 2 x 240v 50w halogen |
| Power connection | 1 x system connection in 1 x system connection out |
Nb A maximum of 3 satellite units per master unit.
At least one master unit needed for each installation.
| Vacuum system | |
|---|---|
| 15MB Pump system (multiples of) | Capacity 15m3/hr |
| Flushing capacity 150 flushes/hr Power cons. (nom) 1.5KW 230v 60 Hz Current 6.1A |
|
| Weight | 120kgs (approx) |
| Power connection | 1x 16a 240v Single phase |
| Grey water tanks – basins and urinals discharge to tank by gravity and interfaced with vacuum system by ED valve which is activated by water level | |
Frequently Asked Questions About SuperLux Modular Toilet Hire
What is included with SuperLux Modular Toilet Hire?
The SuperLux system is made up of modular toilet facilities that can be configured according to the requirements of the installation. Depending on the configuration, this can include toilet cubicles, urinals, vanity units and accessible toilet facilities.
How many SuperLux modules do I need?
There is no single configuration suitable for every event. The number and type of modules required will depend on factors such as guest numbers, event duration, available space and the facilities required.
Where can a SuperLux system be installed?
SuperLux requires a firm, level installation area protected from the weather. It is particularly suited to covered locations such as marquees and suitable temporary or permanent structures.
What water supply does SuperLux require?
A water supply is normally required at between 2 and 5 bar. Where a suitable mains supply is not available, a tank and booster pump arrangement may be possible.
What electrical supply does SuperLux require?
Electrical requirements depend on the final configuration. A basic 3+1 installation requires two 13 amp single-phase 240 volt supplies: one for the pump assembly and one for water heating and lighting. Larger installations may require additional supplies.
Does SuperLux use chemicals?
The SuperLux system is primarily designed to operate using vacuum drainage and low water usage rather than a chemical toilet system.
How much water does a SuperLux toilet use per flush?
The standard specification gives approximately 0.8 litres per flush, with water consumption adjustable depending on the system configuration.
Can SuperLux provide accessible toilet facilities?
Yes. Accessible toilet modules can be incorporated into a SuperLux installation where required.
Can Mobile Thrones advise on the correct SuperLux configuration?
Yes. If you provide details of your event, expected guest numbers, location and available site infrastructure, Mobile Thrones can advise on the most appropriate configuration and requirements.
